MODEL SMC-3 ACCESSORIES

Taping and Shielding Heads (SMC-3 and JV300)

These taping and shielding heads are used for applying a variety of non-adhesive tapes such as mylar, polyester, paper, varnished silk, fiber glass, cloth, coper shielding, etc. on toroidal coil applications. Gear driven, interchangeable magazines for various widths of tape. Auto matictape cut-off from spool supply. Electronic counter measures supply of tape to magazine and wrap of tape onto core. Separate speed controls for loading and wrapping. Fully adjustable tape overlap on core.

Open Gear Design

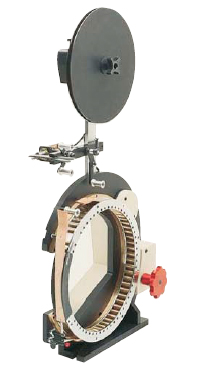

14" Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 17.0" (431.3 mm)
  • Minimum Coil O.D.: 3.0" (76.2 mm)
  • Minimum Coil I.D.: 2.0" (50.8 mm)
  • Maximum Coil Height.: 6.0" (152.4 mm)
  • Tape Widths: 5/16", 3/8", 1/2", 5/8", 3/4", 1"(8 mm, 10 mm, 12 mm, 15 mm, 19 mm,25mm)

9" Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 10.0" (254.0 mm)
  • Minimum Coil O.D.: 2.5" (63.5 mm)
  • Minimum Coil I.D.: 1.0" (25.4 mm)
  • Maximum Coil Height.: 3.0" (76.2 mm)
  • Tape Widths: 5/16", 3/8", 1/2", 5/8", 3/4", 1"(8 mm, 10 mm, 12 mm, 15 mm, 19 mm,25mm)

9" SI Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 10.0" (254.0 mm)
  • Minimum Coil O.D.: 2.5" (63.5 mm)
  • Minimum Coil I.D.: 0.650" (16.50 mm)
  • Maximum Coil Height.: 3.0" (76.2 mm)
  • Tape Widths: 1/4", 5/16", 3/8", 1/2" (6 mm, 8 mm, 10 mm, 12 mm)

9" SG Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 10.0" (254.0 mm)
  • Minimum Coil O.D.: 2.0" (50.8 mm)
  • Minimum Coil I.D.: 1.375" (34.9 mm)
  • Maximum Coil Height.: 3.0" (76.2 mm)
  • Tape Widths: 5/16", 3/8", 1/2", 5/8", 3/4", 1"(8 mm, 10 mm, 12 mm, 15 mm, 19 mm,25mm)

12" SG Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 10.0" (254.0 mm)
  • Minimum Coil O.D.: 3.0" (76.2 mm)
  • Minimum Coil I.D.: 1.5" (38.1 mm)
  • Maximum Coil Height.: 4.0" (101.6 mm)
  • Tape Widths: 5/16", 3/8", 1/2", 5/8", 3/4", 1"(8 mm, 10 mm, 12 mm, 15 mm, 19 mm, 25mm)

16" SG Taping and Shielding Head

four_inch_qa
  • Maximum Coil O.D.: 17.0" (431.3 mm)
  • Minimum Coil O.D.: 3.0" (76.2 mm)
  • Minimum Coil I.D.: 2.0" (50.8 mm)
  • Maximum Coil Height.: 6.0" (152.4 mm)
  • Tape Widths: 1/4", 5/16", 3/8", 1/2" (6 mm, 8 mm, 10 mm, 12 mm)
